Overview

EquiPSim is aimed at training technicians, engineers and operators in and/or for semiconductor manufacturing jobs, as well as at course environments in educational settings. It contains several modules which emphasize the dynamic behavior of chemical and physical processes as realized in the complex equipment utilized in semiconductor fabs. Specifically, these modules include:

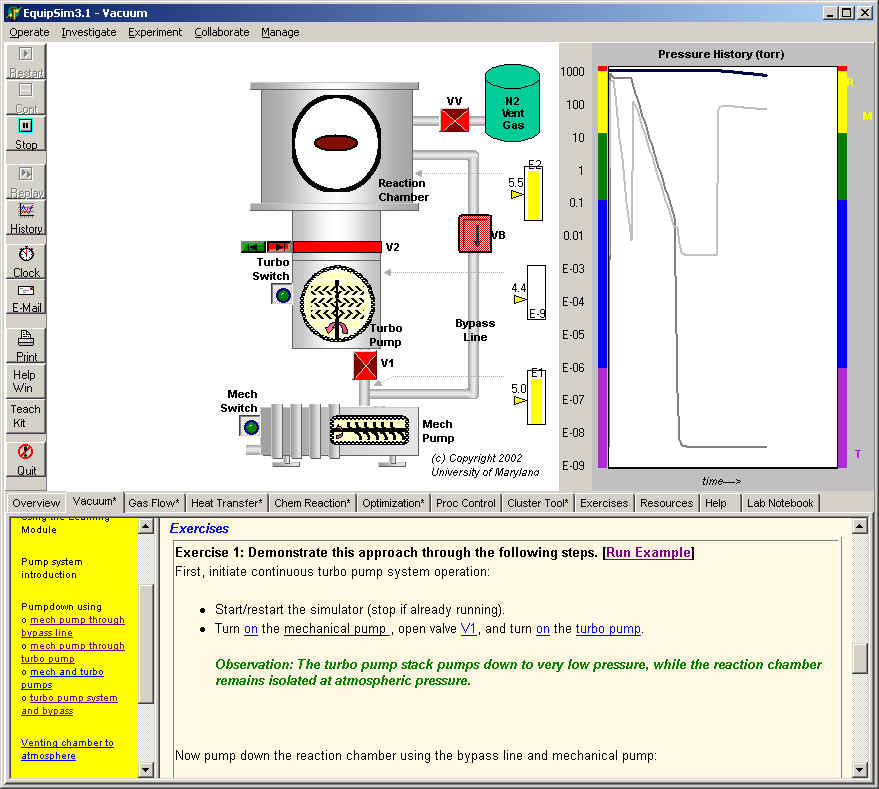

  • Vacuum
    Establishment and maintenance of low pressure and vacuum environments; components
  • Gas Flow
    Components and approaches to reactive gas flow and control in process environments
  • Heat Transfer
    Radiative, conductive, and convective heat transfer mechanisms
  • Chemical Reaction
    Chemical reaction kinetics and key parameters employed in semiconductor manufacturing processes

EquiPSim was developed using the SimPLE framework (Simulated Processes in a Learning Environment).
